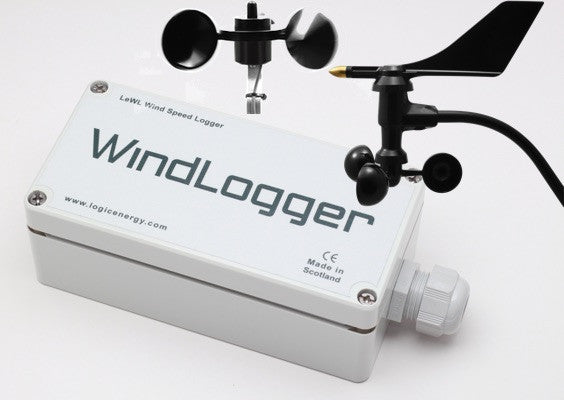

WindLogger with 2 anemometers & wind vane

Added Add to Cart

  • This kit utilises the new WindLogger feature of having 2 anemometer inputs recording data simultaneously, so you can measure the wind speed at two different heights.

    What is this good for? Mainly to calculate wind shear or more commonly used to extrapolate wind speed at a higher heights. Imagine you want to know the wind speed at 23 meters but your wind mast only reaches up to 18 meters. You could connect the top anemometer at 18 meters and the second one at 12 meters for example. With these two values you could extrapolate your wind speed at 23 meters without having to physically measure it. Just keep in mind it is not recommended to extrapolate more than 2/3rds of the top measurement point.

    This kit brings all the key features from a professional wind monitoring system but at an entry level price. The kit comes with:

     • new LeWL WindLogger
     • 1 x Combined anemometer with wind vane, with 13 meters of cable and attachment support for the mast
     • 1 x Vortex anemometer with 10m of sensor cable
     • Quick guide installation
     • Industrial grade batteries and industrial grade microSD card.
    If you need more technical specifications about the new WindLogger and sensors, just follow the links above. For generic F.A.Q, click here.
  • Download manual and quick guide here or see F.A.Q. for WindLogger and videos

  • Specifications
    - Record wind speeds from up to 2 anemometers simultaneously - Average wind speed, gust wind speed and standard deviation (turbulence) and wind direction
    - Input for external temperature probe
    - Up to 1 year of battery life recording 1 minute data or up to 3 years battery life recording in 10 minutes intervals. (10 seconds available for testing purposes)>- Time-stamped data recorded to microSD card in standard CSV format for import into Excel or wind analysis software. Includes all sensor values, plus battery status.- Simple analysis tools included. (excel template for your manipulation or Java app)
    - Fully weatherproof IP65 rated enclosure

    SD card memory storage
    - Files in standard CSV ASCII format, archived into monthly files
    - Records average, standard deviation and maximum values
    - Data recorded with date and time stamp
    - microSD flash card FAT32
    Four sensor inputs
    - Log two anemometers at once (2 digital inputs)- Supports dry contact (volt-free) switch, Hall effect switch, open collector or 3V logic level signal Wind speed input
    - Potentiometer type wind direction sensor, 1k - 20k ohms.
    - Support for external temperature sensor
    Serial port to interface with PC
    - RS232 compatible for reading values while logging data
    - Setup menu via serial port or via SD card
    - 4800bps
    - Custom sensor factor setup via RS232

    Mechanical information
    - Operating Temperature -40*C to + 70*C (check with us first for extreme weather applications)
    - Sealed IP65 enclosure with gland for sensor wires
    - Dimensions: 160x80x55mm
    - Weight: 450gm including batteries
